Overview

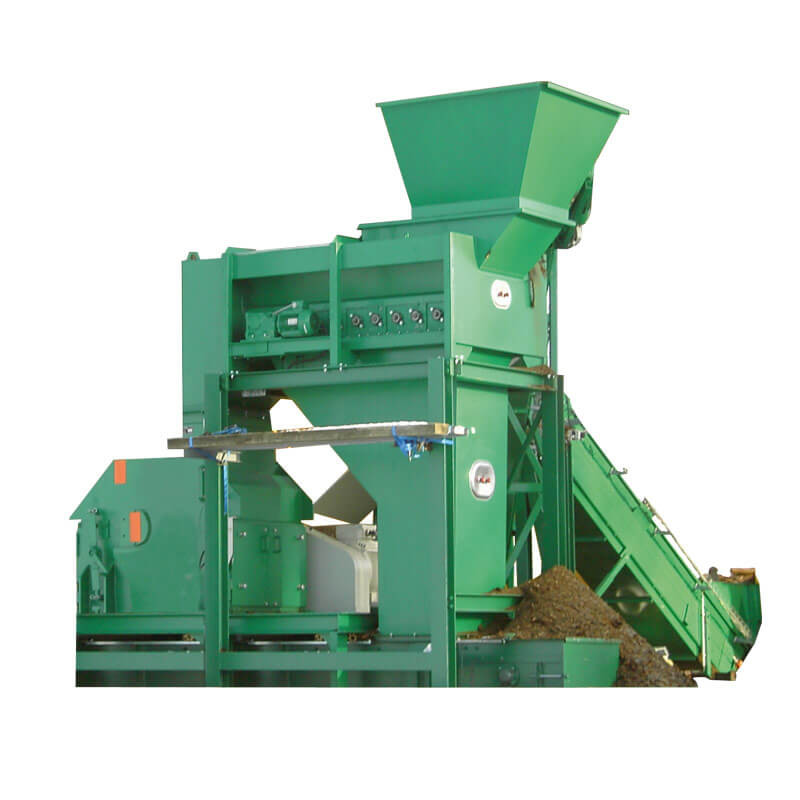

The star screening machine is very efficient at separating all bulk materials up to around 600 kg/m3 and particle sizes up to roughly 300 mm -- overlengths up to roughly 1,000 mm -- and is particularly suited for screening overlengths in sawmills.
It is constructed from sheet steel and has several in-line horizontal shafts, on which intermeshing screening stars are mounted. The bulk material is transported horizontally by the rotary motion of the shafts and the fines fall through the gap between the shafts and screening stars.
Throughput:
5 to 400 m3/h depending on the particle size and mixing ratio of the input material.
