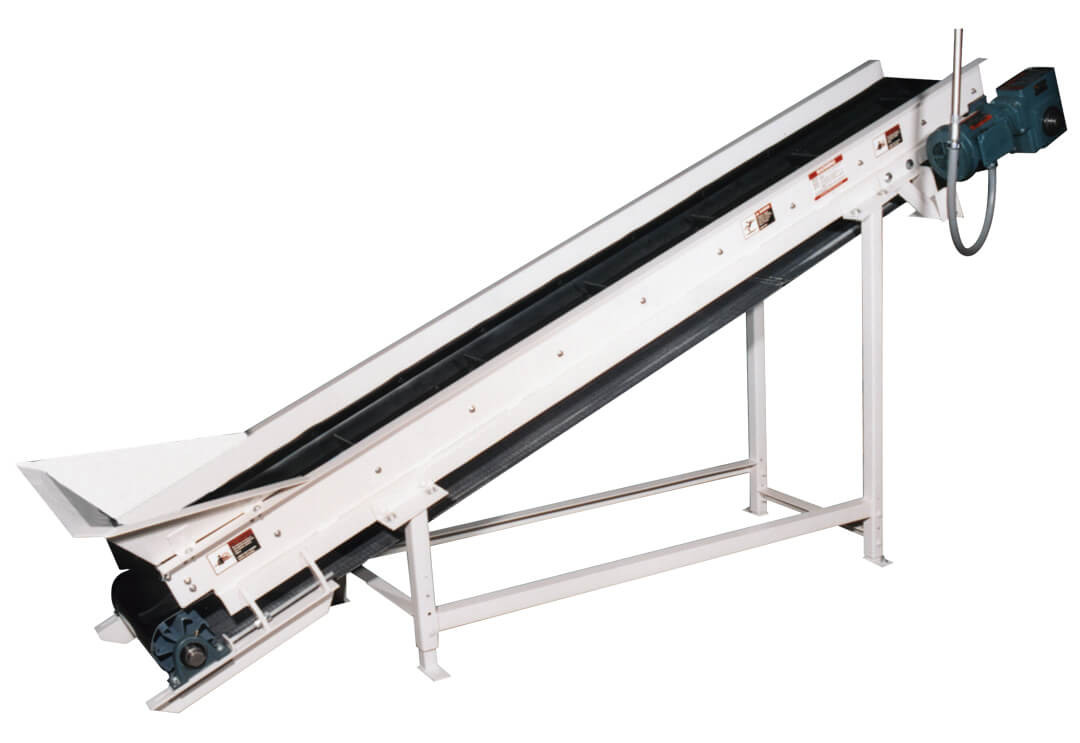

RMH Gaylord Belt Conveyor
Heavy duty inclined conveyor used for coveying shredded material into gaylord containers.

Overview

Vecoplan RMH Gaylord Inclined Belt Conveyors are built for heavy-duty use, with a reinforced steel trough and heavy-duty crowned head and winged tail pulleys. PVC belting with metal cleats at 24 inch centers prevent material slippage.

Features

  • Sliderbed conveyor constructed of reinforced steel trough with straight sidewalls
  • Dimension: 10’ long bed length, 16” wide, 4.5’ discharge height, 6” sidewalls
  • Rubber sidewall skirting retains material on belt
  • Adjustable support legs with mounting pads
  • Bolt-on infeed hopper
  • PVC belting with metal cleats at 24inch centers
  • Standard belt speed: 94 fpm
  • Heavy duty crowned head and winged tail pulleys
  • Tail pulley cover
  • 1 HP TEFC motor, 230/460V, 3 PH, 60 HZ. Others available
  • Maximum load / full load capacity: 1,500 lbs
