RMH Discharge Belt Conveyor


RMH Discharge Belt Conveyor

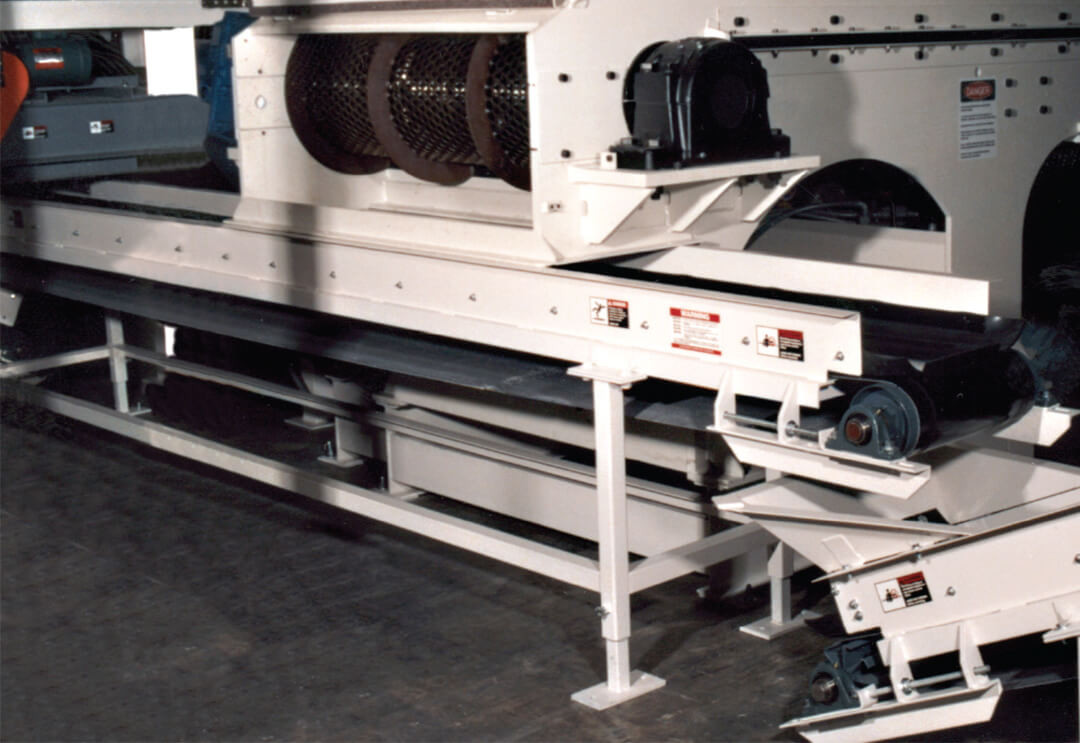

Horizontal conveyors used to convey shredded material away from size reduction equipment


Vecoplan RMH Discharge Belt Conveyors are built to fit virtually any material discharge need , with rubber sidewall skirting to prevent material spills and adjustable support legs with mounting pads.


  •  Rubber sidewall skirting contains material on belt
  • Adjustable support legs with mounting pads
  • PVC belting with rubber cleats at 24” centers
  • Dimensions: 12’, 16’, 24’ lengths, 16” wide, 6” sidewalls
  • Standard belt speed: 94 fpm
  • Heavy duty crowned head and winged tail pulleys
  • Tail pulley cover
  • 1 HP TEFC motor, 230/460V, 3 PH, 60 HZ
  • Maximum load / full load capacity: 1,500 lbs
