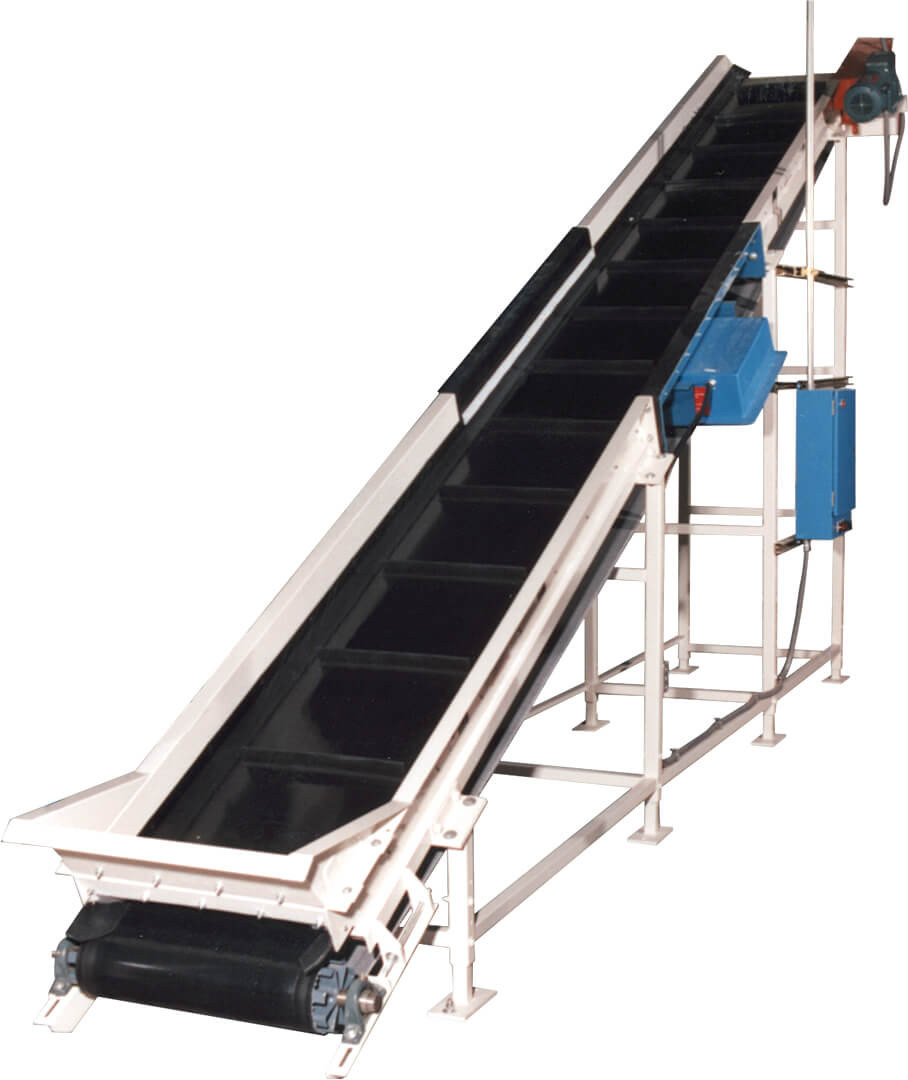

RMH Granulator Infeed Belt Conveyor


RMH Granulator Infeed Belt Conveyor
Heavy duty inclined conveyor used for loading material into granulators


Available options:
  • Metal detector mounted under bed
  • Non-ferrous bed section
  • Metal-free belt seam


  • Sliderbed conveyor constructed of reinforced steel trough with straight sidewalls
  • Dimension: 21’ long bed length, 9’ high, 24” wide, 6” sidewalls. Incline” 25 degrees
  • Rubber sidewall skirting retains material on belt
  • Adjustable support legs, mates to various brands
  • Bolt-on infeed hopper
  • PVC belting with metal cleats at 24” centers, other belts available
  • Standard belt speed: 94 fpm
  • Heavy duty crowned head and winged tail pulleys
  • 2 HP TEFC motor, 230/460V, 3 PH, 60 HZ
  • Maximum load / full load capacity: 1,500 lbs
